Oil Free Vacuum Pump / Dry Vacuum Pump Features:
◆ No air pollution, maintenance free
Rocker series lab vacuum pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
◆ Moisture trap with filter cartridge
Rocker 400 lab vacuum pump is equipped with filter cartridge at the air inlet to filter particle and moisture to prolong the life of pump.
◆ Vacuum regulator
Rocker series lab vacuum pumps are equipped with vacuum regulator to adjust vacuum.
◆ Thermal protection device
Every motor of Rocker series lab vacuum pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

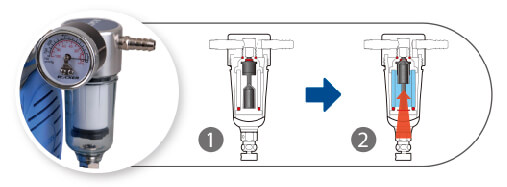

◆ Prote™ overflow protection <ONLINE SHOW!>
Rocker 400 lab vacuum pump is equipped with Prote™ overflow protection which can prevent a large amount of liquid from being sucked into the pump.
Oil Free Vacuum Pump / Dry Vacuum Pump International Certificates:
◆ CE certification
◆ CSA certification
◆ IP 30 protection
◆ RoHS certification
Oil Free Vacuum Pump / Dry Vacuum Pump Applications
◆ Suspended solid test
◆ Vacuum filtration
◆ Microbiological test
◆ Air sampling
Specification
Rocker400 Specification (110V, 60Hz) ◆ Max. power:100 W ◆ Max. current:1.0 A ◆ Max. vacuum:105 mbar ◆ Max. flow rate:37 L/min ◆ Vacuum regulator:Yes ◆ Overflow protection:Yes ◆ Filter cartridge:Yes ◆ Thermal protection:Yes ◆ Motor rotation speed: 1750 RPM ◆ Horse power:1/6 HP ◆ Noise level:52 dB ◆ Hose barb:ID8 ◆ Net weight:5.2 Kg ◆ Dimension (LxWxH):31 x 13.5 x 20.4 cm Specification (220V, 50Hz) ◆ Max. power:80W ◆ Max. current:0.4A ◆ Max. vacuum:105 mbar ◆ Max. flow rate:34 L/min ◆ Vacuum regulator:Yes ◆ Overflow protection:Yes ◆ Filter cartridge:Yes ◆ Thermal protection:Yes ◆ Motor rotation speed:1450 RPM ◆ Horse power:1/6 HP ◆ Noise level:52 dB ◆ Hose barb:ID8 ◆ Net weight:5.2 Kg ◆ Dimension (LxWxH):31 x 13.5 x 20.4 cm
Product Part Number |
Product |
◆ 167400-11(22) |
Rocker 400, Vacuum Pump AC110V, 60Hz (AC220V, 50Hz) |
